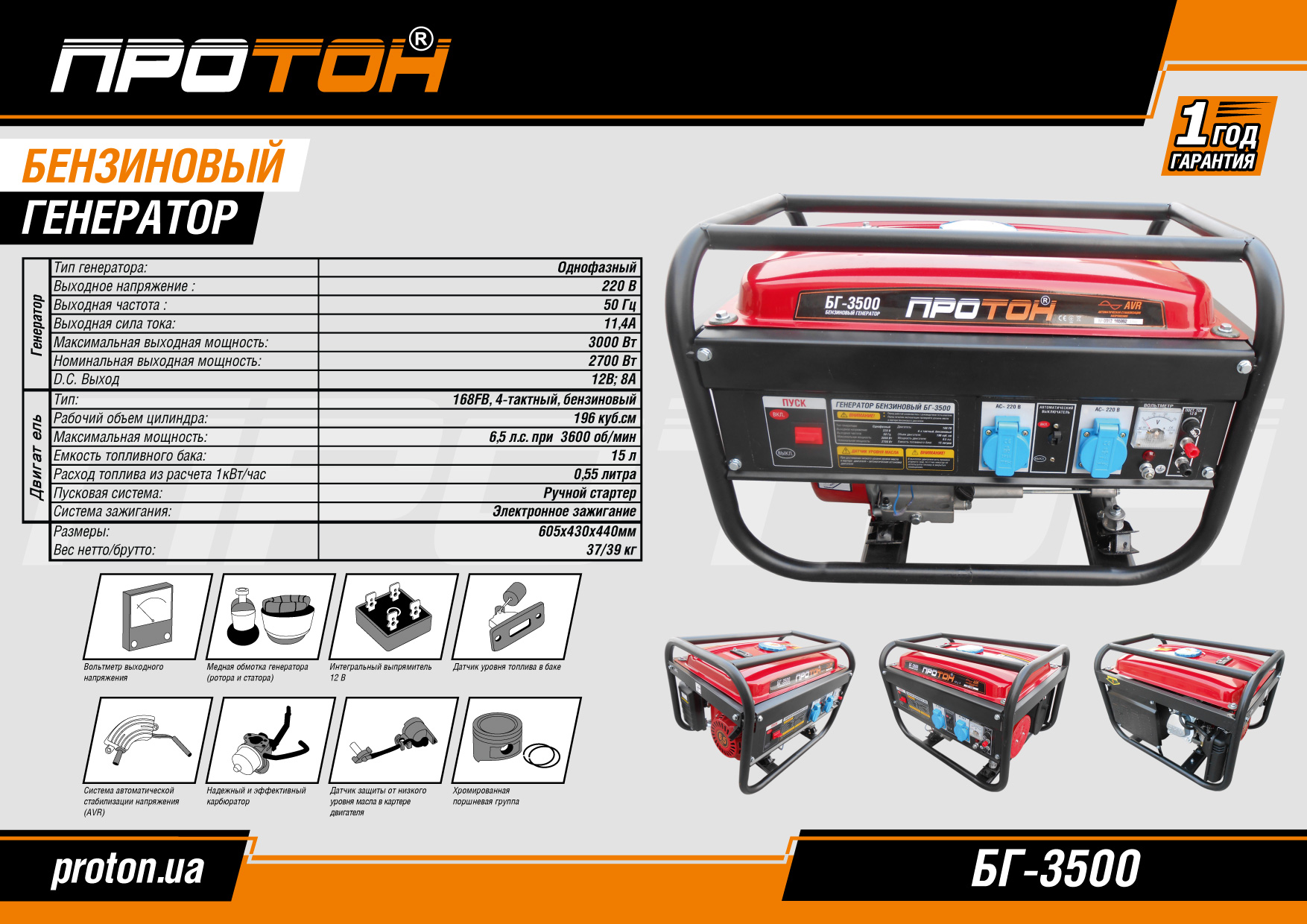

Type of generator Single-phase
Output voltage, V 220
Output frequency in Hz 50
Output current, A 11,4
Maximum Power Output, W 3000
Rated Power Output, W 2700
D.C. output, V, A 12; 8
Engine Type 168FB, 4-stroke, gasoline
Displacement, cc 196
Maximum output power hp / rpm 6.5 at 3600
Fuel tank capacity, l 15
Fuel consumption rate,  1kW/h 0,55
Starting system Recoil starter
Ignition system Electronic ignition
Size, mm 605x430x440
Net / Gross weight, kg 37/39



Copper winding of generator (rotor and stator)
